Electromagnetic Rotary Kiln With Active Heating Technology Fully Digital Control

Name: Electromagnetic Rotary Kiln With Active Heating Technology Fully Digital Control
Brand: Hengyang
Price: 56200 USD

Brand Name : Hengyang

Model Number : HC-525

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : 56200-76100

Payment Terms : T/T

Supply Ability : 270 sets/month

Delivery Time : 20-40 days

Packaging Details : negociated

Name : Electromagnetic Rotary Kiln

Capacity : 300-4500kg/h

OEM : Accept

Color : customize

Materials : Customize

Contact Now

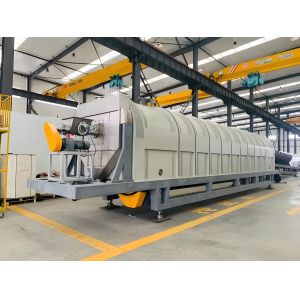

Electromagnetic Rotary Kiln

Most of the traditional rotary kilns are heated by gas or fuel oil and other materials, which causes issues of environmental pollution and high energy consumption. The electric calciner adopts electromagnetic heating induction technology, no smoke, no noise, etc., to avoid these problems. The new electric calciner meets environmental protection requirements and can improve production efficiency and reduce energy consumption.

Working Principle

The electromagnetic rotary kiln primarily consists of a combustion system, control system, cylinder, drive device, feeding system, and discharging system. During operation, materials enter the rotary kiln from the kiln's end of the kiln. The main transmission machine drives the gear device to transmit power through the main reducer to rotate the rotary kiln cylinder. The cylinder has a certain inclination, so the material moves in all directions with the cylinder rotation. After being calcined, the clinker enters the grate cooler for cooling.

Advantages

Adopt Active Heating Technology

The electric rotary kiln utilizes electromagnetic induction principles to achieve direct and active heating. This indirect fired rotary kiln has a high power density, resulting in faster heating rates.

Reduce heating lost

The rotary kiln electric furnace adopts active heating, avoiding the heating lost in the heating transmission process, So it is more efficient and energy-saving.

Safer and More Environmentally Friendly

The electromagnetic rotary kiln is a safer and cleaner alternative to traditional kilns as it doesn't require an open flame or a heating medium.

Fully Digital Control System

This rotary kiln uses a fully digital control system, realizing more accurate temperature control and intelligent equipment operation.

Technical Details

Model	NOCT	Size of rotary kiln	Rated heating power	Installation angle	Productivity	Power supply	Dimensions	Weight
HY10	1100℃	φ0.1×4.5m	36kW	0.5～5.0°	～4kg/h	380VAC 50HZ	～6.1×1.6×1.4m	～4T
HY 15		Φ0.15×4.5m	42kW		～8kg/h		～6.1×1.6×1.4m	～4T
HY 20		φ0.2×4.5m	48kW		～15kg/h		～6.1×1.6×1.4m	～4T
HY35		φ0.35×9m	68kW	0.5～4.0°	～120kg/h		～11×1.8×1.9m	～8T
HY40		φ0.4×9m	108kW		～150kg/h		～11×1.8×1.9m	～10T
HY 50		φ0.5×9m	180kW		～250kg/h		～11×1.9×2.0m	～12T
HY 62		φ0.62×10.5m	260kW	0.5～3.0°	～300kg/h		～12.5×2.2×2.1m	～15T
HY 70		φ0.7×10.5m	280kW		～360kg/h		～12.5×2.3×2.2m	～18T
HY 80		φ0.8×10.5m	350kW		～480kg/h		～12,5×2.3×2.2m	～20T
HY 94		φ0.94×12m	400kW	0.5～2.5°	～650kg/h		～14×2.4×2.3m	～25T
HY 100		φ1.0×12m	410kW		～750kg/h		～14×2.5×2.5m	～28T
HY 110		φ1.1×12m	460kW		～900kg/h		～14×2.5×2.5m	～30T
HY 125		φ1.25×12m	500kW		～1000kg/h		～14×2.6×2.6m	～35T
HY 142		φ1.42×13.5m	600kW		～1350kg/h		～15.5×2.7×2.7m	～40T
HY 150		φ1.5×13.5m	750kW		～1500kg/h		～15.5×2.8×2.9m	～45T
HY 160		φ1.6×15m	900kW		～1600kg/h		～17.5×2.9×3.0m	～50T
HY 180		φ1.8×15m	1000kW		～1900kg/h		～17.5×3.1×3.2m	～55T
HY 200		φ2.0×15m	1100kW		～2200kg/h		～17.5×3.3×3.4m	～60T
HY 220		Φ2.2×15m	1300kW		～2600kg/h		～18×3.5×3.6m	～70T
